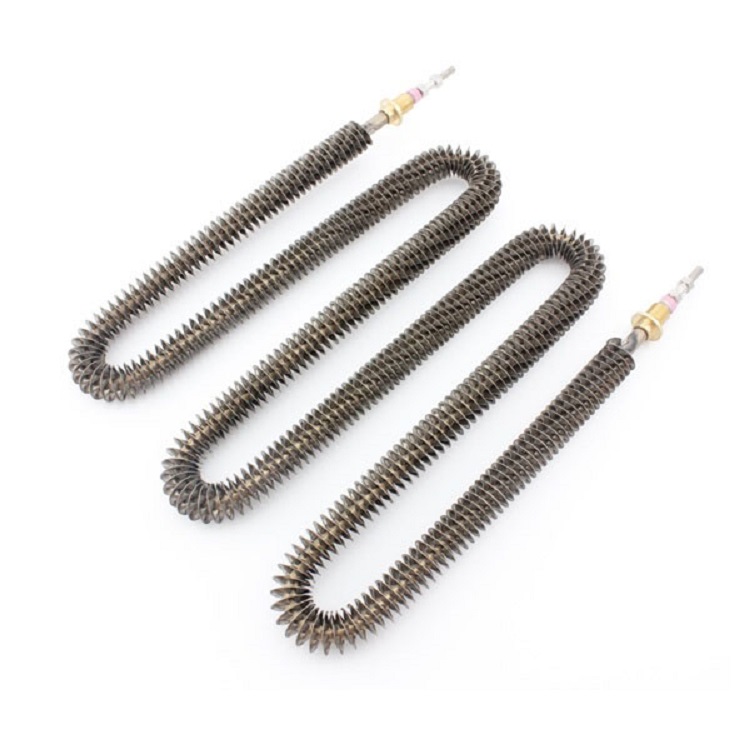

220V 2kw finned tube heater element
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
Shanghai
Quantity
US $14.00 - US $30.00 / piece
- Applicable Industries:Hotels
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Air Heater
- Power Source:Electric
- Place of Origin:CN;JIA
- Warranty:3 years
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Long Service Life
- Brand Name:Vanorm
- Dimension(L*W*H):Custom Size
- Weight:Final Dimension
- Voltage:220v
- Certification:CE
- Working Temperature Range:400 ℃
Product Description
NO | Specification parameter | Detail |
1 | Product name | 220V 2kw finned tube heater element |
2 | Material | Stainless steel304,316,Incoloy800,840 |
3 | Voltage | 50V-600V |
4 | Power | 1000W-8333W |
5 | Diameter | 10mm-30mm |
6 | Density | 7-25w/cm2 |
7 | Resistance wire | Ni80Cr20 or OCr25Al5 |
8 | Leak current | ≤0.5mA |
9 | Insulation resistance | ≥1000MΩ(cold condition) |
10 | Wattage tolerance | cold condition:+5%-10% |
11 | Resistance powder | Magnesium oxide(A grade) |
12 | Shape | M shape,U shape, straight shape or customizable |
13 | Warranty | 3years |
14 | Application | Air heater, used in oven and duct heater and other industry heating process |

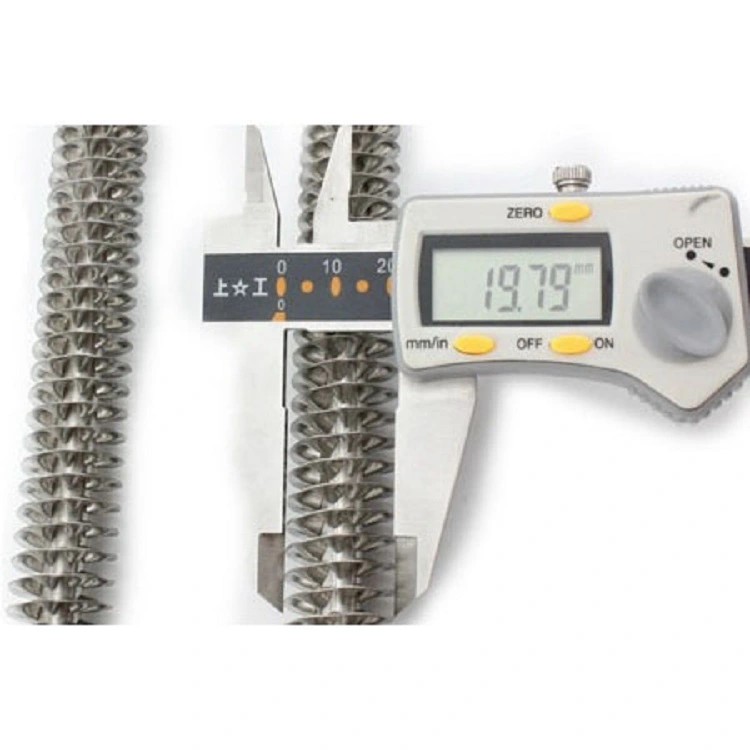

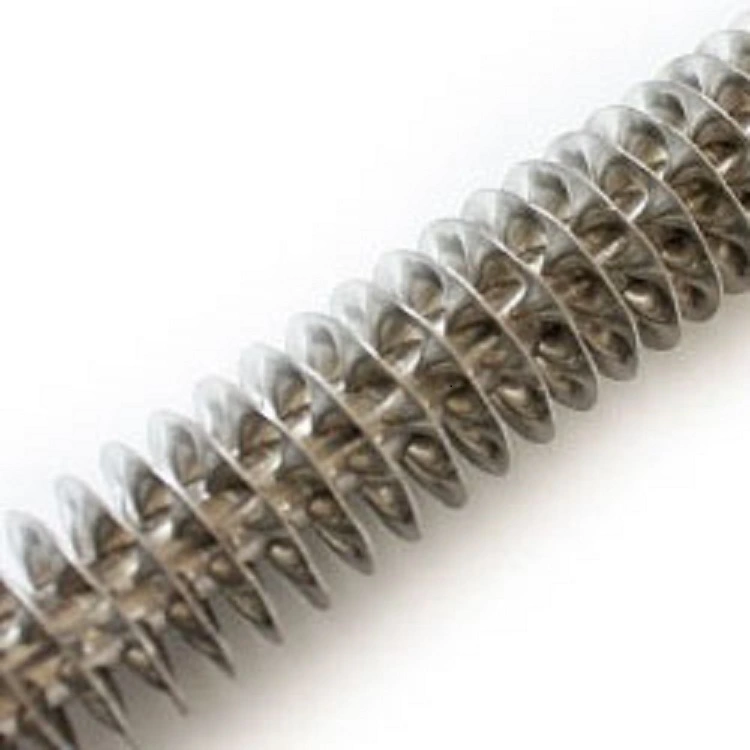

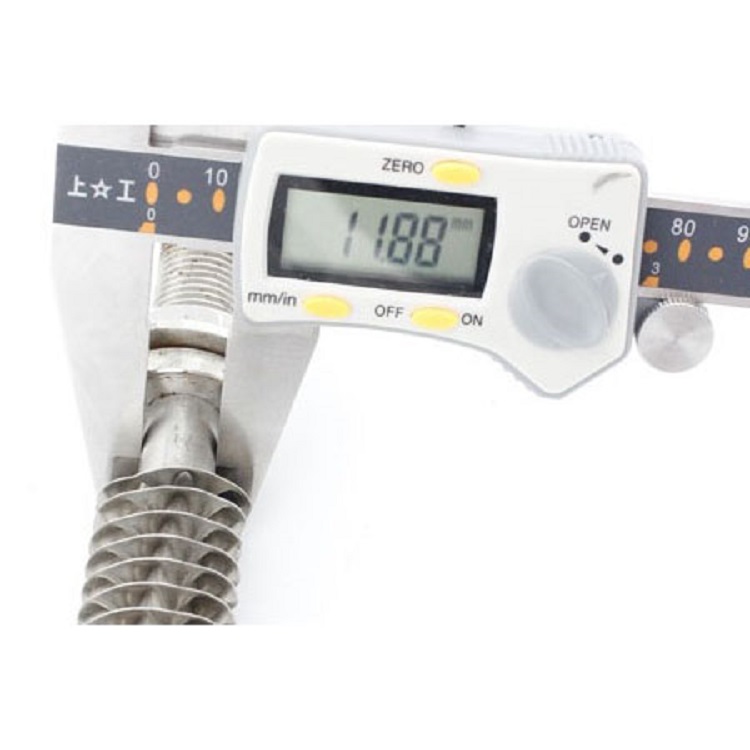

Details Images
Installation details
Product packaging
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:our factory is located in Qingtong Industrial Area,Jiangyan District,Taizhou City,Jiangsu Province,China,about 3 hours bus ride from Shanghai.All our clients,from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A:If you need sample please pay the cost, but we will return the samples cost to you when you formal order.
4.Q:What is the delivery date of the samples?
A:About 5 ~ 10 days. Because some kind of the heating elements need to prepare the material.
5.Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.
