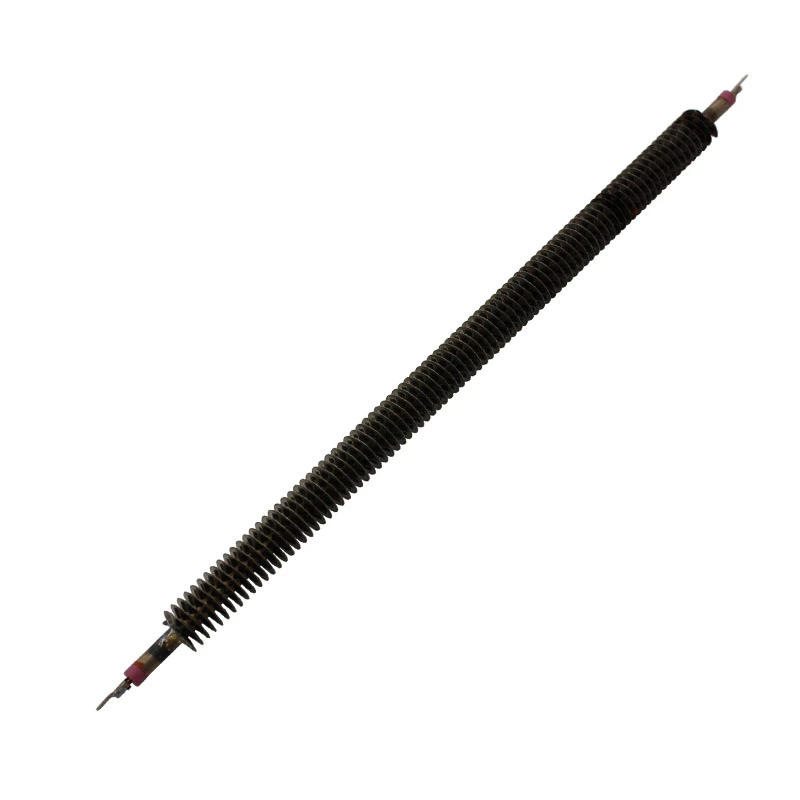

480V straight air finned tubular heater finned tubular heater for air
minimum order
10 pieces
Supply Ability
50000pieces / Month
Country of Origin
shanghai
Quantity
US $13.00 - US $15.00 / pieces
- Applicable Industries:Manufacturing Plant
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Air Heater
- Power Source:Electric
- Place of Origin:CN;JIA
- Warranty:2 years
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Competitive Price
- Brand Name:vanorm
- Voltage:480V
- Certification:CE
- Working Temperature Range:400 ℃
480V straight air finned tubular heater finned tubular heater for air
Specification parameter | Detail | Remark | |
Sheath Material | SUS304 | Materials can be changed to be sus321,sus316L,incoloy804,incoloy800 as requested. | |
Voltage/Wattage | 480V/2250W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10% | |
Tube Diameter | |||
MgO | A Grade | We can use other powder if requested | |
Resistance Wire | OCr25Al5 | or Ni80Cr20 | |
Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required | |
Ground lug | yes | ||
Porcelain column | silver white | or as requested,surface is smooth, glaze (porcelain) | |
Blade terminal | double | single,double or as requested | |
Weight | 2KG | depend on finally diemension | |
Thermostat | NO | or as requested | |
Power Source | electrical | or as requested | |
Built-in fuse | 1 | 1,2 or as requested | |
Warranty | 1years | ||
