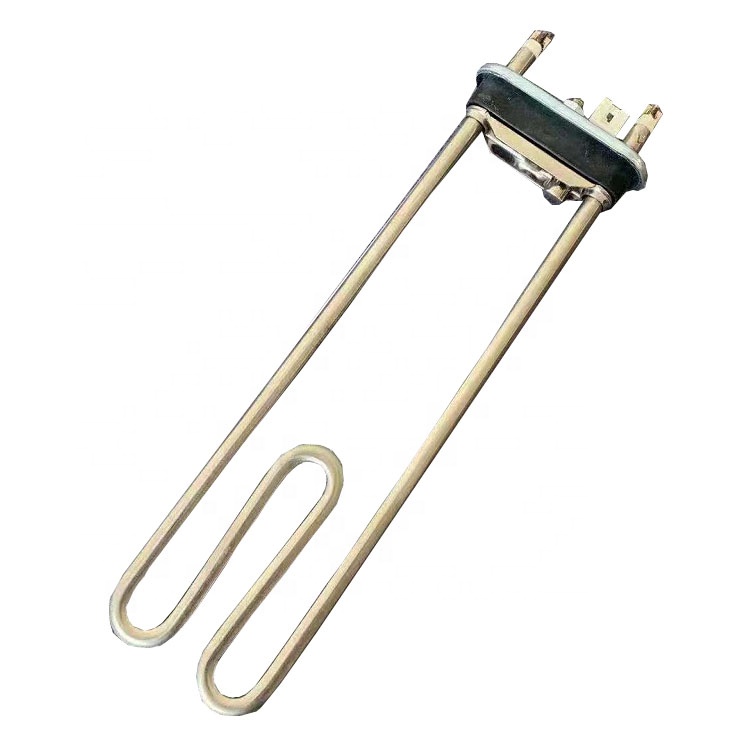

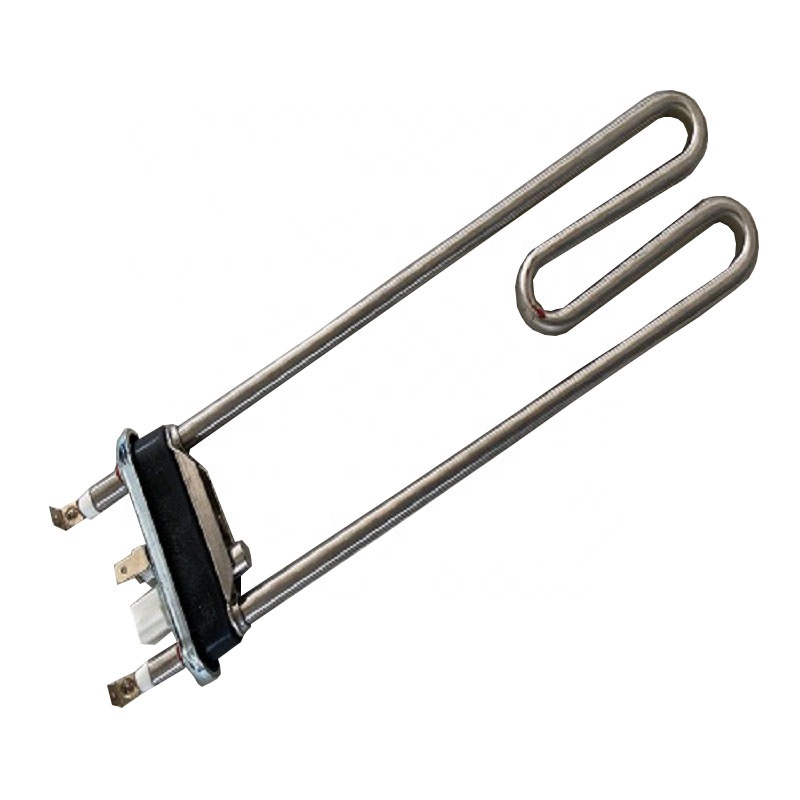

High power industrial heating element for washing machine 8.5mm heating element rod
minimum order
1 piece
Supply Ability
50000piece / Month
Country of Origin
shanghai
Quantity
US $12.00 - US $25.00 / piece
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Applicable Industries:Hotels
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Restaurant
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Air Heater
- Power Source:Electric
- Place of Origin:CN;JIA
- Warranty:1 year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Competitive Price
- Brand Name:vanorm
- Voltage:220V
- Certification:CE
- Working Temperature Range:30 ℃
Product Description
Specification parameter | Detail | Remark | |
Sheath Material | SUS304 | Materials can be changed to be sus321,sus316L,incoloy804,incoloy800 as requested. | |
Voltage/Wattage | 220V/3000W | Voltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10% | |
Tube Diameter | 8.5mm | ||
MgO | A Grade | We can use other powder if requested | |
Resistance Wire | OCr25Al5 | or Ni80Cr20 | |
Terminal | SUS304 | Materials of terminal housing could be stainless iron,stainless steel if required | |
Ground lug | yes | ||
Porcelain column | silver white | or as requested,surface is smooth, glaze (porcelain) | |
Blade terminal | single terminal | single,double or as requested | |
Weight | 400 | depend on finally diemension | |
Thermostat | NO | or as requested | |
Power Source | electrical | or as requested | |
Built-in fuse | 1 | 1,2 or as requested | |
Warranty | 1years | ||
Usage | Platen washing machine | ||
Details Images

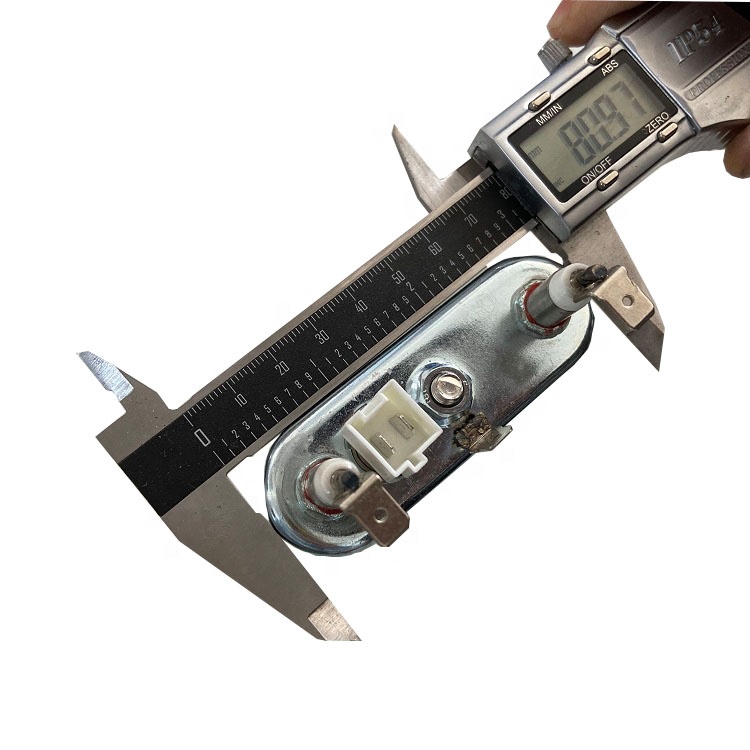

Installation details
Product packaging
FAQ
1. Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:our factory is located in Qingtong Industrial Area,Jiangyan District,Taizhou City,Jiangsu Province,China,about 3 hours bus ride
from Shanghai.All our clients,from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A:If you need sample please pay the cost, but we will return the samples cost to you when you formal order.
4.What is the delivery date of the samples?
A:About 5 ~ 10 days. Because some kind of the heating elements need to prepare the material.
5.Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:our factory is located in Qingtong Industrial Area,Jiangyan District,Taizhou City,Jiangsu Province,China,about 3 hours bus ride
from Shanghai.All our clients,from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A:If you need sample please pay the cost, but we will return the samples cost to you when you formal order.
4.What is the delivery date of the samples?
A:About 5 ~ 10 days. Because some kind of the heating elements need to prepare the material.
5.Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.
